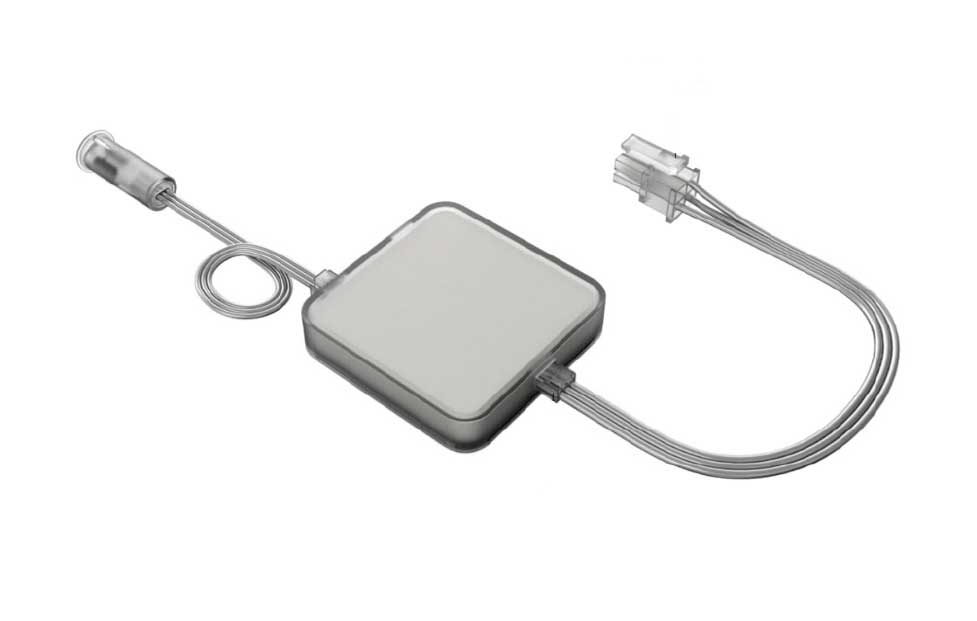

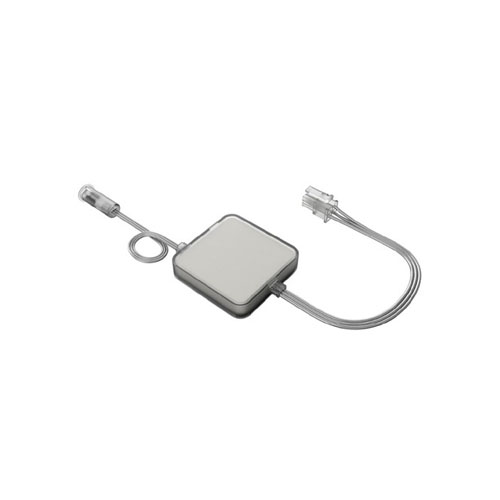

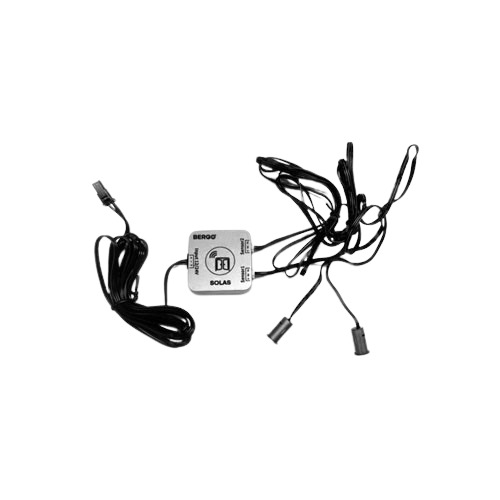

SOLAS Double Wired Switch (Double-Door IR)

•Double-Door IR
• Input/Output voltage: 12/24 VDC
• Input/Output Current: 5 mA
• PWM frequency: 1 KHz
• Soft On/Off: 3s +/- 10%

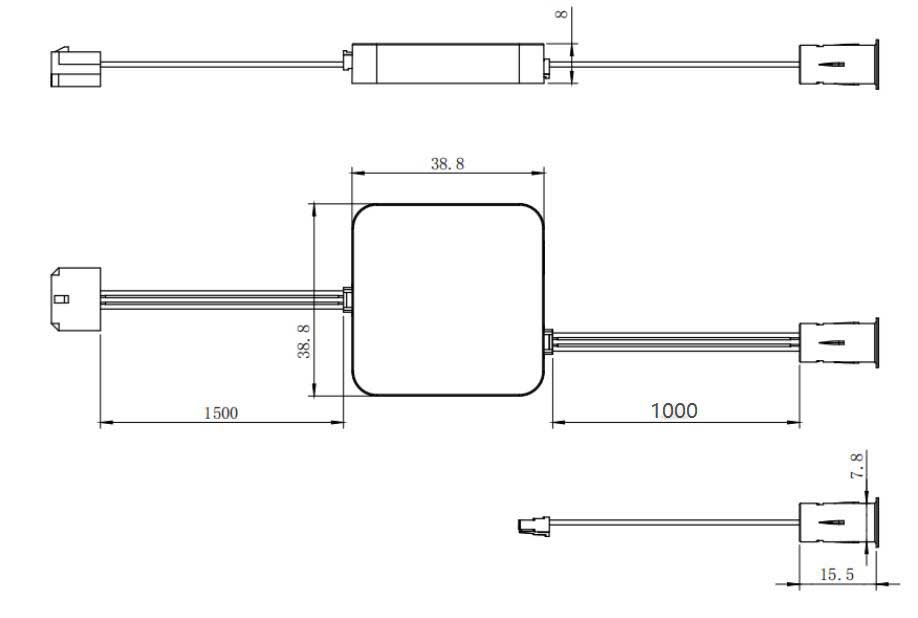

• Sensor wire length: 1000 mm +/- 20 mm
• Control box wire length: 1500 mm +/- 20 mm
• Size: 39 x 39 x 8 mm
• Finish/Colour: Graphite
• Required Products: BG-873.08.XX.XX
